Line 16 (Beijing Subway)

Line 16 of the Beijing Subway (Chinese: 北京地铁16号线; pinyin: běijīng dìtiě shíliù hàoxiàn) is a rapid transit rail line in Beijing. Currently, the line is 31.5 km (19.6 mi) in length with 16 stations.[2][3] It will be 49.8 km (30.9 mi) with 30 stations when fully completed.[5] The line is fully underground.

Line 16

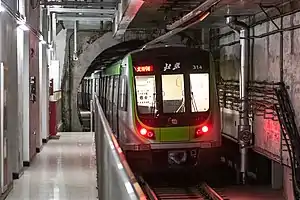

Line 16 train leaving Xibeiwang
Overview
Other name(s)M16 (planned name)
StatusOperational
LocaleXicheng and Haidian District
Beijing
TerminiBei'anhe
Yuyuantan Park East Gate
Stations16 (in operation)
Service
TypeRapid transit
SystemBeijing Subway
Operator(s)Beijing MTR Metro Line 16 Corp., Ltd.
Depot(s)Bei'anhe
Rolling stock8-car Type A (DKZ93, SFM40)
Daily ridership140,000 (2021 first half, peak)[1]
History
Opened31 December 2016 (2016-12-31)
Technical
Line length31.5 km (19.6 mi)[2][3] (in operation)
CharacterUnderground
Track gauge1,435 mm (4 ft 8+1⁄2 in) standard gauge
Electrification1,500 V DC from overhead catenary
Operating speed80 km/h (50 mph)[4]
Route map
Beianhe depot
Bei'anhe
Jingmi diversion canal
 Wenyang Lu
Sanxingzhuanghou river
 Daoxianghu Lu
Dongbutou flood canal
 Tundian
Tundian flood ditch
Hongfeng canal
 Yongfeng
Wuyi canal
 Yongfengnan
 Xibeiwang
 Malianwa
 Nongda Nanlu
Qing river
Anheqiaobei
 Xiyuan
Line 4
Tiangongyuan
Wanquanheqiao
Wanquan river
 Suzhou Jie
Line 10
outer – inner
Suzhouqiao
Line 12 (to be opened 2022)
Sijiqing – Guanzhuangluxikou
Wanshousi
Nanchang river and Zizhuyuan lake
 National Library
Line 9
line 9 Guogongzhuang
Line 4
line 4 Anheqiaobei
Nanchang river
line 4 Tiangongyuan
Erligou (not opened)
Line 6
Jin'anqiao – Lucheng
Ganjia Kou
Line 3 (under planning)
Tiancun – Caogezhuang North
Yuyuantan Park East Gate
section below to be opened 2022
 Muxidi
Line 1
Pingguoyuan – Sihuidong
Yongding River diversion canal
Jingjiu railway and Beijing underground cross-city railway
 Daguanying
Line 7
Beijing West railway station – Huazhuang
Hongliannanli
Lianhua river
 Lize Shangwuqu
Line 14 (to be opened 2022)
Zhangguozhuang – Shangezhuang
Daxing Airport Express (to be opened 2022)
Daxing Airport
Fengcao river
 Dongguantounan
Fangshan line
Yancundong
Fengtai railway station
Jinghu railway etc.
Line 10
inner – outer
National Library
Fengtai Nanlu
Line 9
Guogongzhuang
 Fufengqiao
Jinghu railway
 Kandan
 Yushuzhuang
Yushuzhuang yard
 Yushuzhuang North
Fengtai West railway station marshalling yard
 Wanpingcheng
Inside Line 16 trains

Construction began in December 2013. The northern section, from Bei'anhe to Xiyuan was opened on 31 December 2016.[2] An infill station, Nongda Nanlu was opened on December 30, 2017.[5] It extended to Ganjia Kou on 31 December 2020, and extended to Yuyuantan Park East Gate on 31 December 2021.

The line is operated by the Beijing MTR Corporation Limited and uses CNR Changchun DKZ93 and CSR Sifang SFM40 eight-car high-capacity wide-body Type A trains.[6] Line 16's color is dark-moderate green.

Route

The line starts at the west end of Beiqing Road (北清路) just outside of the 6th Ring Road and follows the road east to Yongfeng Road (永丰路) where it turns south towards the city. Line 16 follows Yongfeng Road south to Xiyuan, its former terminus. The line then continues south to the National Library and Yuyuantan Park East Gate.

History
Route diagram inside a Line 16 train in December 2021.

In 2009, Line 16 was among the 198 major urban planning projects listed by the city’s development and reform commission.[7] At that time, Line 16 was slated to run about 35 km (22 mi) from Huilongguan in Changping District to Huaxiang in Fengtai District.[7]

According to the June 2010 plans, the northern section of Line 16 will replace the originally planned Line 4 northern extension and run 48 km (30 mi) from Beianhe in Haidian District south to Xiaoyueyuan near the Marco Polo Bridge in Fengtai District.[8] The line would begin near Beianhe, and provide access to parts of Haidian, north of the foothills the Western Hills that extend into district. For this reason, that section of the line was also referred to as the Haidian Shanhou (literal translation Haidian Back Mountain) Line because it begins on the backside of the low-lying range that extends from the Fragrant Hills to the Summer Palace.[8] Points of interest that the line may pass along route to Xiaoyueyuan in the south include the Summer Palace, Haidian Gymnasium, National Library, Purple Bamboo Park, Beijing Zoo, Chegongzhuang West Road, Sanlihe, Wanshou Temple, Lize Business District, and the Fengtai railway station.[8] The proposal was scaled back with the removal of the Haidian Shanhou section in December 2010, reducing the line to just 23 km (14 mi), from Suzhoujie to Wanping. But the northern section was subsequently restored months later, bringing the line length 49 km (30 mi).[9]

The Beijing Municipal Commission of Urban Planning released the plans for several subway stations in 2013.[10] Construction of the line began in December 2013.[11]

The northern section, from Bei'anhe to Xi Yuan, except for Nongda Nanlu, opened on December 31, 2016.[2] Nongda Nanlu opened on December 30, 2017.[5] In April 2020, Beijing Municipal Commission of Development and Reform decided to build an infill station on the southern section of Line 16: Yushuzhuang North.[12]

On December 31, 2020, the middle section from Xi Yuan to Ganjia Kou opened.[3] (Suzhou Jie and Erligou stations were not opened)

On December 31, 2021, a one-station extension to Yuyuantan Park East Gate opened.

SegmentCommencementLengthStation(s)Name
Bei'anhe — Xi Yuan 31 December 2016 19.6 km (12.18 mi)[2] 9 Northern section
Nongda Nanlu 30 December 2017 Infill station 1
Xi Yuan — Ganjia Kou 31 December 2020 10.929 km (6.79 mi)[13] 5 Middle section
Ganjia Kou — Yuyuantan Park East Gate 31 December 2021[14] 0.97 km (0.60 mi) 1

Future Development

The extension to Wanpingcheng will open in 2022.[15]

List of Stations

List of stations from north to south.

Station Name[16] Connections Nearby Bus Stops Distance
km[13]		 Location
English Chinese
Bei'anhe 北安河 544 北京后花园临线 昌72 专16 专99 0.000 0.490 Haidian
Wenyang Lu 温阳路 330 544 642 651 902 908 快速直达专线46 通勤苹果园 2.653 3.143
Daoxianghu Lu 稻香湖路 448 543 544 902 专54 2.310 5.453
Tundian 屯佃 512 543 544 575 902 快速直达专线202 快速直达专线203 2.352 7.805
Yongfeng 永丰 446 512 543 544 575 902 快速直达专线153 快速直达专线202 快速直达专线203 1.960 9.765
Yongfengnan 永丰南 365 384 438 570 575 623 902 快速直达专线98 1.315 11.080
Xibeiwang 西北旺 333 384 438 570 575 623 902 908 909 专143 2.108 13.188
Malianwa 马连洼 305 328 362 449 476 509 518 575 608 623 651 932 2.195 15.383
Nongda Nanlu 农大南路 305 333 362 437 438 476 509 575 608 651 专28 1.517 16.900
Xiyuan 西苑  4  129 303 331 332 333 346 384 393 394 432 437 438 476 508 534 563 563区间 579 584 601 608 610 636 644 671 686 688 夜8 2.690 19.590
Wanquanheqiao 万泉河桥 374 400 528 982 982快车 983 快速直达专线177 1.980 21.570
Suzhou Jie 苏州街  10  — —
Suzhouqiao 苏州桥 26 74 323 355 361 365 368 374 425 450 563 610 614 634 651 688 921 921快车 夜30 2.983 24.553
Wanshousi 万寿寺 74 300 323 362 368 374 394 450 534 603 610 634 645 夜30 1.610 26.163
Guojia Tushuguan (National Library) 国家图书馆  4   9  86 92 129 305 320 332 481 563 609 653 658 695 夜8 1.721 27.884
Erligou 二里沟  6  — — Haidian / Xicheng
Ganjiakou 甘家口 10 61 101 102 103 114 121 320 612 686 夜12 夜13 2.635 30.519
Yuyuantan Dongmen (Yuyuantan Park East Gate) 玉渊潭东门 13 21 32 65 68 专138 0.970 31.489
Muxidi 木樨地  1  Haidian
Daguanying 达官营  7  Xicheng
Hongliannanli 红莲南里
Lize Shangwuqu 丽泽商务区  14   Daxing Airport  Fengtai
Dongguantounan 东管头南  Fangshan
Fengtai railway station 丰台站  10
Fengtai Nanlu 丰台南路  9
Fufengqiao 富丰桥
Kandan 看丹
Yushuzhuang 榆树庄
Yushuzhuang North 榆树庄北
Wanpingcheng 宛平城

Rolling Stock
ModelImageManufacturerYear BuiltAmount in ServiceFleet NumbersDepot
DKZ93 CRRC Changchun Railway Vehicles 2016 35 301–335 Beianhe
SFM40 CRRC Qingdao Sifang 29 336–364
Formation

← Bei'anhe
Ganjia Kou →
Car No. 12345678
Designation Tc1 Mp1 M1 Mp3 M3 M2 Mp2 Tc2
